GOCCOPRO QS200

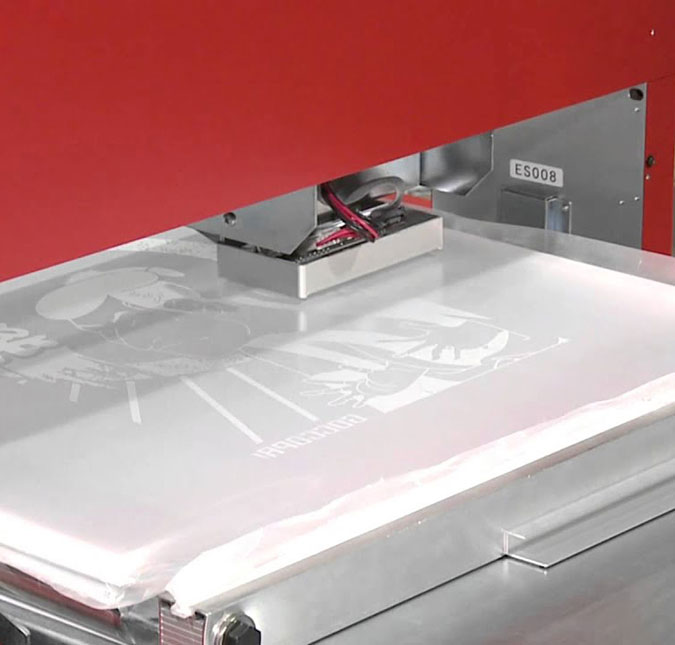

The QS200 introduced the flat bed imaging, using a small width THP, designs are imaged in 'lanes' with multiple passes along the design.

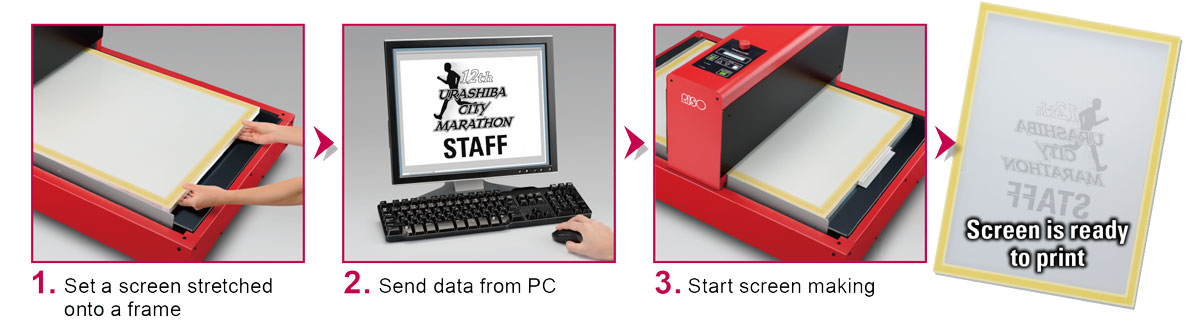

Imaging designs onto mesh already tensioned and mounted onto a frame inside the machine allowed for greater screen tension and highly accurate registration of multiple colours - compared to GP100's manual framing
With the introduction of the new QS2536 model offering a wider single pass TPH, the QS200 remains available, however effectively has now been superseded by the superior QS2536.
-
Max Size
A2 - 420mm (W) x 620mm (L) -
Image Size
A5/ A4/ A4+/ A3/ A3+/ A2 -
Resolution
600dpi x 600dpi Multi-lane TPH -
Mesh Type
RISO QS Mesh 'P' Type (Polyester)
56cm / 113cm Wide Roll
-
Applications
Specifications & Technical Components
-
Screen Making Method
High Speed DTS (Direct To Screen) Digital Thermal Screen Making -
Image Size
Minimum: 100mm (W) x 100mm (L)
Maximum: 420mm (W) x 620mm (L) -
Resolution
600dpi x 600dpi (perforation density: 600dpi) -
Frame Size
Minimum: 260mm x 260mm
Maximum: 580mm x 780mm
Thickness: 20mm - 50mm -
Operation
LED Panel/ Front Operation -
Memory Storage
128MB Internal -
Supported OS
Windows (both 32/64bit): 10, 8.1, 8, 7, Vista, XP (32bit only)
Mac OS: 10.15 back to to 10.7 -
Interface
USB 2.0 -
Power Supply
220-240V/2.5A, 50/60Hz -
Power Consumption
Approx. 300W -
Dimensions
During Use: 60.5 (W) x 65 (D) x 38.5cm (H)
During Storage: 50 (W) x 65 (D) x 38.5cm (H)
With Lid/ Trays Open: 60.5 (W) x 68 (D) x 73.5cm (H)
-
Weight
Approx. 67Kg (148lb)
Downloads and Documents
Documents, downloads and files to support GOCCOPRO QS200.
Service and Repair
Self install of spare parts for QS200 is not supported by NEHOC Australia. Please contact your place of purchase to arrange machine service.
Replacement TPH requires firmware changes and revised lane registration.
